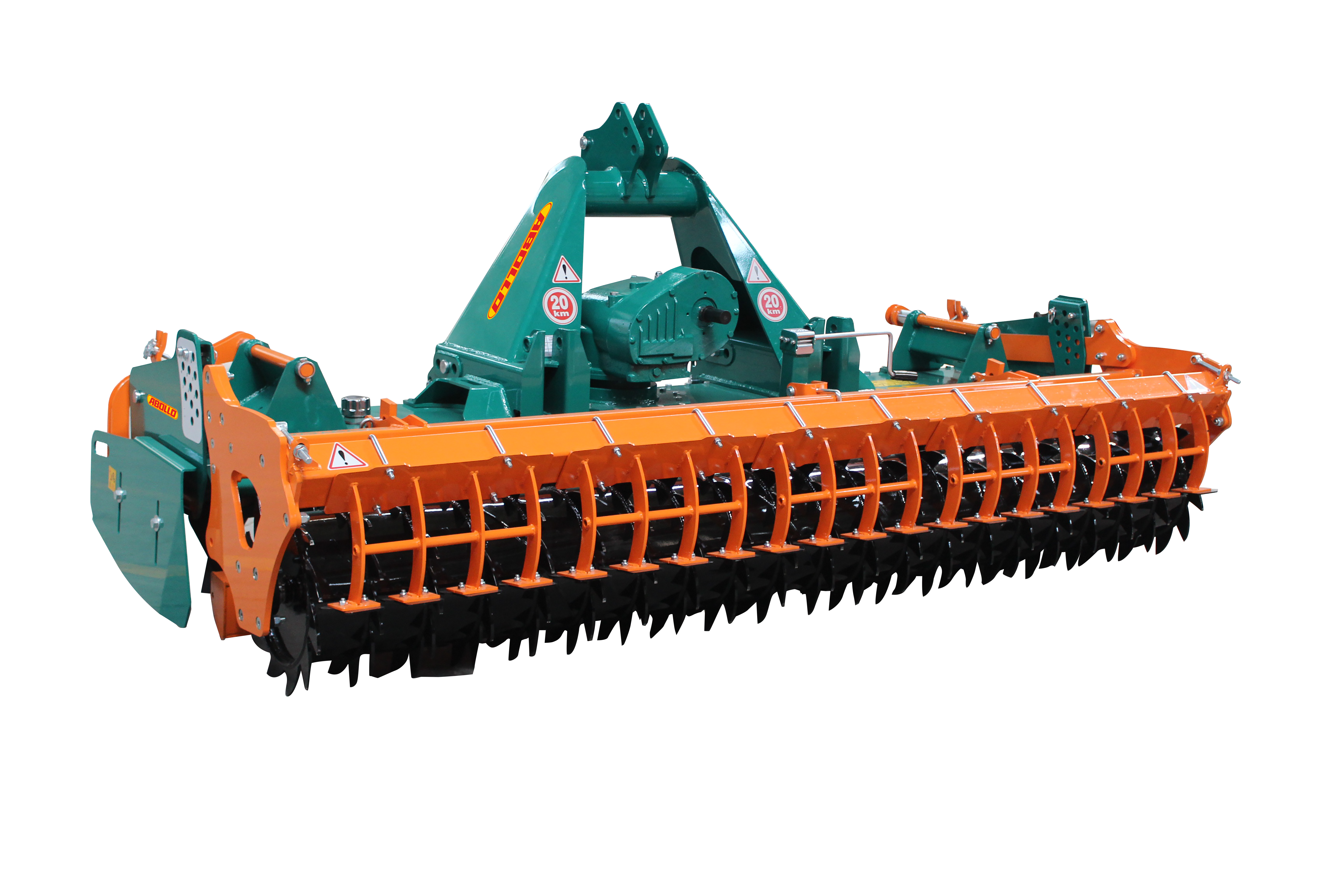

POWER HARROW, The new generation Power Harrow is designed to offer high performance and durability in difficult field conditions. The 30 cm diameter rotor transmission gears are manufactured from special alloy materials for long-lasting and trouble-free operation. The machine addresses different needs with 240 cm, 300 cm and 360 cm working width options. The blades are in 12x260 mm and 14x300 mm sizes, allowing selection to be made according to the soil structure. The hybrid chassis structure combines the rigidity of the box profile and the ease of maintenance of the covered system. The gears are protected against external effects by being placed on the upper part of the profile. Spring-loaded vertical moving side walls prevent the chassis from flexing when encountering obstacles. The easy blade change system offers a safe and practical experience in long-term use. The gear roller compresses the soil and ensures better contact of the seed with the soil. This increases the plant emergence percentage and provides a more efficient agricultural process.
Model | TY-PHA2400 | TY-PHA3000 | TY-PHA3600 | |
Width | cm | 250 | 310 | 370 |
Length | cm | 140 | 140 | 140 |
Height | cm | 135 | 135 | 135 |
Weight | kg | 1360 | 1550 | 1740 |
Work Width | cm | 240 | 300 | 360 |
Work Depth | cm | 12x26 / 14x30 | 12x26 / 14x30 | 12x26 / 14x30 |
Number of Blades | Qty | 16 | 20 | 24 |
Number of Rotors / Diameter | Qty/cm | 8 / 30 | 10 / 30 | 12 / 30 |
Rotor Rotation Speed | rpm | 196 - 481 | 196 - 481 | 196 - 481 |
P.T.O | rpm | 540 - 1000 | 540 - 1000 | 540 - 1000 |
Tractor Power | hp | 90 - 110 | 100 - 120 | 115 - 135 |
