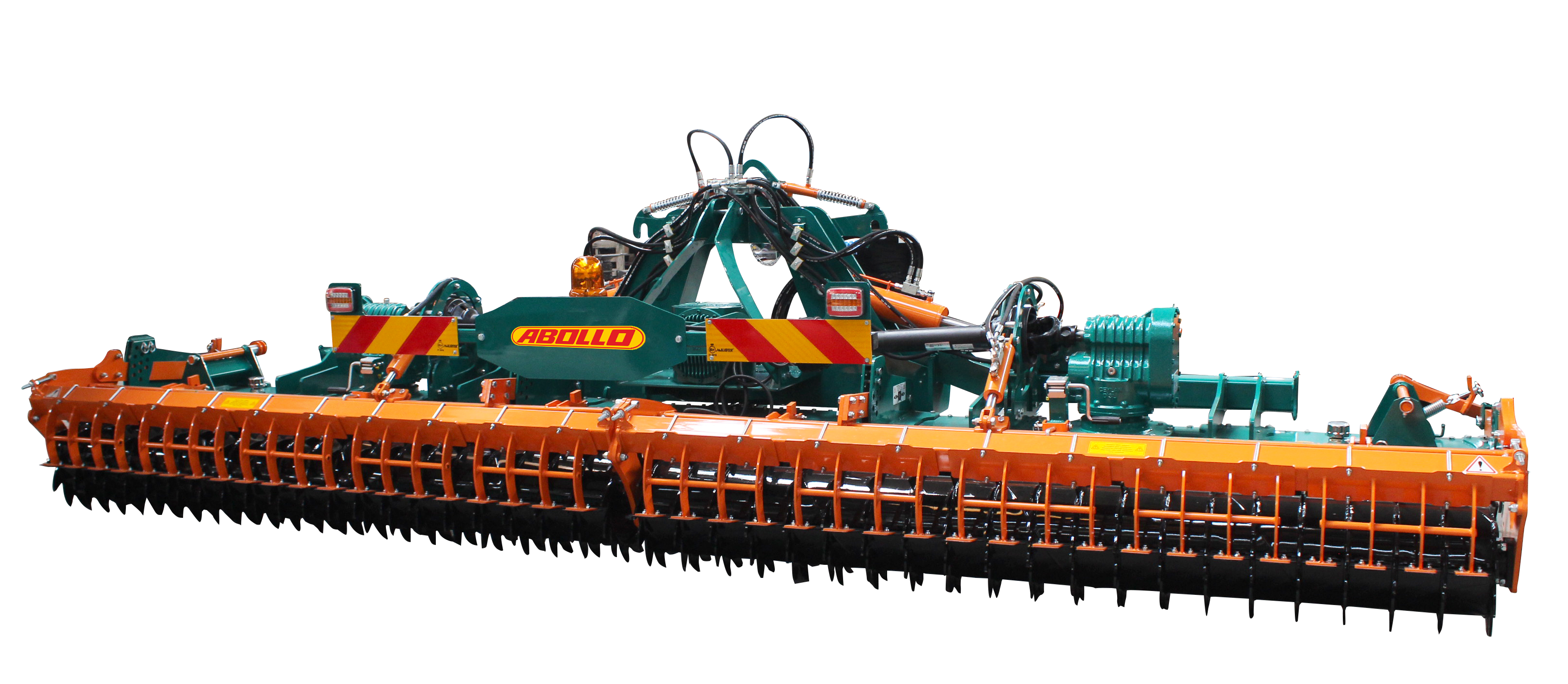

FOLDING POWER HARROW adapts to field conditions with high performance and low maintenance cost. Special alloy 30 cm diameter rotor transmission gears guarantee long-lasting operation. The machine offers flexible use with 300 cm and 600 cm working width options. Blades can be selected as 12x260 mm and 14x300 mm according to the soil structure. Hybrid chassis structure combines the rigidity of the box profile and the ease of maintenance of the covered system. Easy blade change system provides practical use in long-term operations. Spring-loaded vertical moving side walls protect the chassis by flexing against obstacles in the field. Rear gear roller improves the germination process by compressing the upper layer of the soil. Foldable design provides ease of transportation and space saving. Floating chassis system offers equal processing performance and increases the durability of the machine.
Model | TY-FPHA4800 | TY-FPHA6000 | |
Total Width | cm | 490 | 610 |
Total Length | cm | 193 | 193 |
Total Height | cm | 155 | 155 |
Road Condition Width | cm | 260 | 260 |
Road Condition Length | cm | 193 | 193 |
Road Condition Elevation | cm | 276 | 336 |
Weight | kg | 3400 | 3800 |
Work Width | cm | 480 | 600 |
Work Depth | cm | 12x26 / 14x30 | 12x26 / 14x30 |
Number of Blades | Qty | 32 | 40 |
Number of Rotors / Diameter | Qty/cm | 16 / 30 | 20 / 30 |
Rotor Rotation Speed | rpm | 239 - 425 | 239 - 425 |
P.T.O | rpm | 1000 | 1000 |
Tractor Power | hp | 190 - 220 | 200 - 240 |
